Configure UniFi Console Integration - MSPortal.ai Documentation

The UniFi Console integration connects your Ubiquiti UniFi environment to MSPortal so network hardware appears alongside the rest of your managed devices.

Overview

UniFi is treated as an RMM-style device source. Once connected, MSPortal syncs:

Sites from the UniFi console, which you map to MSPortal companies
Devices (access points, switches, gateways, cameras) into a staging area, ready to import into your device inventory
Networks (VLAN, LAN, and WAN configurations) for self-hosted controllers

Unlike most integrations, UniFi does not use the linear setup wizard. The UniFi card opens a dedicated management page with Connections, Sites, Networks, and Devices tabs.

The UniFi integration is in early access and is hidden until it is enabled for your tenant. If you do not see the UniFi card under Settings > Integrations, contact support@msportal.ai to have it turned on.

Connection models

You can add as many UniFi connections as you need, and mix the models freely.

Global console

One UniFi console that spans all of your clients. Sites are mapped to companies manually after the first sync.

Per-company console

A console that belongs to a single client. Every site it discovers is automatically linked to that company.

UniFi Cloud

Connects through Ubiquiti’s Site Manager API using an API key from your ui.com account.

Self-hosted controller

Connects directly to a UniFi OS controller or Cloud Key on your network, using an API key or a username and password.

Prerequisites

Before you begin, make sure you have:

The UniFi integration enabled for your tenant (see the note above)
Administrative access to your UniFi Cloud account or self-hosted controller
MSPortal integration management permissions
Companies already created in MSPortal, so you have something to map sites to

Part 1: Get Your UniFi Credentials

Choose the method that matches how you access UniFi.

UniFi Cloud
Controller API key
Controller username and password

Go to unifi.ui.com and sign in with the Ubiquiti account that owns the consoles you want to sync.

Create an API key

Open the API section and create a new API key. Copy it immediately, it is only shown once.

The cloud API key covers every console and site under that Ubiquiti account, which makes it a good fit for a single global connection. It is read-only, and it does not expose network (VLAN) configurations.

Confirm your controller version

API key authentication requires UniFi OS 9.x or newer. Older controllers must use username and password instead.

Create an API key on the controller

In your UniFi console, open the control plane settings and create an API key for integrations. Copy the key when it is displayed.

Note the controller URL

You need the address MSPortal will reach the controller on, for example https://192.168.1.1 or https://unifi.example.com.

Create a local admin user

In your UniFi console, create a local administrator account that MSPortal can use. Avoid using a personal account so the connection is not affected when someone changes their password.

Note the controller URL

Record the controller address, for example https://192.168.1.1:8443.

Username and password is the only method that returns network (VLAN, LAN, WAN) configurations. If you want the Networks tab populated, use this method against a self-hosted controller.

MSPortal needs to reach your controller over the network. A controller that is only reachable on a private LAN, with no port forward, VPN, or reverse proxy, cannot be synced. In that case, use a UniFi Cloud connection instead.

Part 2: Add a Connection in MSPortal

Open the UniFi management page

Go to Settings > Integrations, find the UniFi card, and open it. The management page has four tabs: Connections, Sites, Networks, and Devices.

Add a connection

On the Connections tab, click Add connection.

Fill in the connection details

Field	Description
Connection name	An optional label, for example “Main office console”. Use this when you have several connections, so they are easy to tell apart in lists and filters.
Scope	Global (all companies) for a console that serves multiple clients, or Per company for a console that belongs to one client.
Company	Shown when scope is Per company. The client this console belongs to.
Connection mode	UniFi Cloud or Self-hosted controller.
Controller URL	Shown for self-hosted controllers, for example `https://192.168.1.1:8443`.
Authentication method	API key or Username & password. UniFi Cloud always uses an API key.

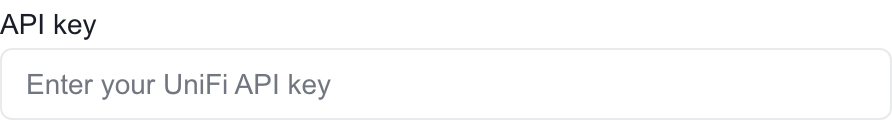

API key / Username and Password	The credentials you created in Part 1.
Allow self-signed certificate	Turn this on for controllers using a self-signed TLS certificate, which is common on self-hosted UniFi.
Sync devices	Whether devices are pulled from this console.
Sync networks	Whether network configurations are pulled from this console.
Auto-import devices	Automatically import discovered devices for mapped companies, instead of importing them by hand.

Test the connection

Click Test connection. A “Connected to UniFi successfully” message confirms MSPortal can reach the console and authenticate.

Save

Click Add connection. MSPortal stores the credentials securely and starts the first sync.

Credentials are encrypted in secure vault storage. They are never shown again after saving, and never appear in logs. Editing a connection keeps the existing credentials unless you enter new ones.

Part 3: Map Sites to Companies

A UniFi site is the unit that maps to an MSPortal company. Devices and networks inherit the company from their site.

Per-company connection
Global connection

Nothing to do. Every site discovered by a per-company connection is linked to that company automatically at sync time.

Part 4: Import Devices

Open the Devices tab

Select the Devices tab and pick the console you want from the Connection dropdown.

Review staged devices

The table shows each discovered device with its name, model, type, MAC address, IP address, firmware, status, site, company, and whether it has been imported.

Filter by import status

Use the Import status filter to show Not imported, Imported, or All devices.

Import

Select the devices you want and import them. They are created in your device inventory with UniFi as the source and Ubiquiti as the manufacturer, and they appear in the Devices module, reports, and compliance alongside devices from your RMM.

Turn on Auto-import devices on the connection to skip this step. New devices found on mapped sites are imported automatically after each sync.

What Gets Synced

Data Type	Sync Direction	Notes
Consoles and sites	UniFi -> MSPortal	Sites are the company-mappable unit
Devices	UniFi -> MSPortal	Name, model, type, MAC, IP address, firmware, status
Networks	UniFi -> MSPortal	VLAN, subnet, purpose, and enabled state
Device import	MSPortal only	Staged devices become records in your device inventory

Network configurations are only available from a self-hosted controller using username and password. The UniFi Cloud API and the controller API key method do not expose them, so the Networks tab stays empty for those connections.

MSPortal only reads from UniFi. It never changes your UniFi configuration, adopts devices, or modifies networks.

Sync Schedule

Sync Type	Schedule
Automatic sync	Every 2 hours
Manual sync	On demand, using Sync now on a connection
Auto-import	Immediately after a sync, when enabled on the connection

Each connection shows its own Last synced time on the Connections tab.

Managing Connections

From the Connections tab you can:

Sync now: pull the latest sites, devices, and networks from that console
Import devices: stage and import devices for that console
Edit: change the connection name, credentials, sync toggles, or auto-import setting
Delete: remove the connection, its stored credentials, and the UniFi data synced for that scope

Deleting a connection removes the stored credentials and the synced UniFi data for that scope, and cannot be undone. Devices you already imported into your inventory are kept.

Troubleshooting

I do not see the UniFi card under Settings > Integrations

The integration is in early access and is enabled per tenant. Contact support@msportal.ai to have it turned on for your account.

Test connection fails on a self-hosted controller

Causes:

The controller URL is wrong, or is missing the port (for example :8443)
The controller uses a self-signed certificate
MSPortal cannot reach the controller from the internet
API key authentication was used on a controller older than UniFi OS 9.x

Solutions:

Confirm the URL by opening it in a browser from outside your network
Turn on Allow self-signed certificate
Publish the controller through a VPN, reverse proxy, or port forward, or switch to a UniFi Cloud connection
On older controllers, switch the authentication method to Username & password

Test connection fails on UniFi Cloud

Causes:

The API key was copied incorrectly, or has been revoked
The key belongs to a different Ubiquiti account than the consoles you expect

Solutions:

Generate a new API key at unifi.ui.com and paste it again
Confirm the account that created the key owns the consoles you want to sync

No sites appear after connecting

Causes:

The first sync has not finished yet
The credentials only have access to consoles with no sites

Solutions:

Click Sync now on the connection and give it a few minutes
Confirm the account or API key can see the sites in UniFi itself

Devices are stuck as Unmapped and cannot be imported

Devices inherit their company from their site. Open the Sites tab and map the site to a company, then sync again.

The Networks tab is empty

Network configurations are only returned by a self-hosted controller using Username & password authentication. UniFi Cloud and controller API keys do not expose them. Check also that Sync networks is enabled on the connection.

Sync toggles look like they reset after editing a connection

Editing a connection reloads its saved settings, including the self-signed certificate option, the sync toggles, and auto-import. If a setting looks wrong after an edit, set it again and save, then confirm it persists after reopening the dialog.

Best Practices

Name every connection

With several consoles in play, a connection name like “Acme HQ Cloud Key” is far easier to work with than a scope label.

Map sites before importing

Devices on unmapped sites have no company and cannot be imported. Clear the Sites tab first.

Use per-company connections where you can

Sites link to the company automatically, which removes the mapping step entirely.

Turn on auto-import for network gear

Access points and switches rarely need review before import, so auto-import keeps the inventory current with no manual work.

Import Devices - General device import guide
Devices Module - Managing devices in MSPortal
Integration Company Mapping - Mapping integration companies and sites
Sync Schedules - When each integration syncs

Need Help?

For assistance with the UniFi integration, contact support@msportal.ai.
